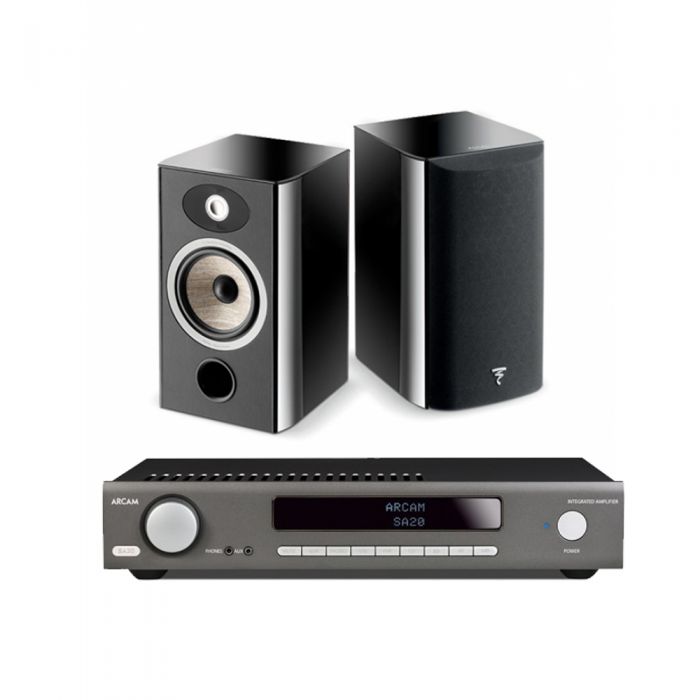

ARCAM SA20 - Integrated Amplifier + Focal Aria 906 - 2-way Bookshelf Loudspeaker Bundle
✓ Authorised UK Dealer
✓ FREE Next Working Day Courier Service to mainland UK
RCAM SA20 - Integrated Amplifier
The design of the HDA range draws upon all of Arcam’s experience as one of the UK’s most respected audio companies, to produce Arcam’s best performing range of audio products yet – using the best quality components and engineering practices, the HDA range is designed and built to give you years of listening enjoyment.
Focal Aria 906 - 2-way Bookshelf Loudspeaker
The Aria 906 is faithful to the DNA of the Aria range: refined high-end acoustics combined with excellent perceived value thanks to the use of noble materials. This 2-way loudspeaker allows users to enjoy all the qualities of the Flax cone: neutrality, presence and finesse.
20% off QED XT25 terminated speaker cables when bought with this bundle.
From £1,479.02 Regular Price £1,894.00
To £1,479.02 Regular Price £1,894.00
SA20
Key Features
- Class G amplification for impeccable sound and efficiency
- 90W of power per channel
- 5 analogue inputs including phono
- 3 digital inputs
- 32-bit DAC,Sabre ESS9038K2M
- Full I/P control
- Total harmonic distortion + noise = 0.003%
There are two frequent problems with hi-fi amplifiers. Class A, the traditional audiophile’s choice, uses a single power supply constantly running at full capacity, even when there’s no signal coming through. Great for reproducing those subtle details at low levels however struggles to provide extreme power when needed.
Class A/B, the most common amp class, switches between the two internal amplifiers, one for each half of the waveform. Far more efficient but often a recipe for crossover distortion, since those low-level details we crave can get lost within any mis-match between the two switching over.
Class G is essentially a hybrid amplifier, utilising Class A specifically for low-level signals, but when required switching in an additional power supply to power those larger sections of the waveform.
Get the app
Control the UPnP audio and basic functions of this product with your iPad, iPhone or iPod Touch and the FREE MusicLife App! The Arcam control app is now available on Android.
"If you value standmounters with scale, power, and refinement, you won't find better for the money."
KEY POINTS
- Flax cone
- TNF tweeter
- Speaker drivers developed and manufactured in France by Focal
- Black High Gloss, Walnut and Prime Walnut finishes
- Front panel: leather effect finish
DISCREET REFINEMENT
The Aria 906 is faithful to the DNA of the Aria range: refined high-end acoustics combined with excellent perceived value thanks to the use of noble materials. This 2-way loudspeaker allows users to enjoy all the qualities of the Flax cone: neutrality, presence and finesse. The intention was a return to the very essence of acoustics for those who are passionate about music. F cone are characterised by their natural sound, with low coloration, their richness of reproduction in the midrange register and their tighter bass. The result is a more homogeneous sound, improved dynamics. Aria offers a classic and modern design.
The Aria 906 is recommended for rooms measuring from 160ft2 (15m2) and from a listening distance of 8ft (2.5m).
PORON SUSPENSION FOR SOFT TREBLE
For the TNF tweeter, we have brought two major evolutions to our aluminum/magnesium tweeter. The suspension between the dome and its bracket uses Poron, a material with shape memory.
This suspension method is directly derived from the famous Utopia Beryllium tweeter, making it possible to reduce distortion by a factor of three in the 2-3kHz range, where the human ear has very great sensitivity.
The inverted dome’s spatial characteristics and very low directivity already make it greatly superior to the conventional domes used by our competitors. This guarantees an incredibly stable sound stage which makes the listening position much less critical.
FLAX CONE, SO ORIGINAL
The flax cones are made in France exclusively by Focal since 2013. With their original design, the cone are entirely oriented towards acoustic performance. They are made of high quality flax fiber enclosed by two thin layers of glass fiber. Flax cones are characterized by their natural sound, with low coloration, their richness of reproduction in the midrange register and their tighter bass.
The lightness of the fiber satisfies the criteria of high internal damping, high velocity and high flexural rigidity. Flax is twice as light as fiberglass, because the fiber is hollow. It also has very low elasticity which makes it ideal to increase the flexural rigidity of a sandwich structure.
Features | RCAM SA20 - Integrated AmplifierContinuous power output (0.5% THD), per channelBoth channels, 8Ω, 20Hz—20kHz: 90W Both channels, 4Ω, at 1kHz: 150W Harmonic distortion, 80% power, 8Ω at 1kHz: 0.002%
Analogue InputsPhono (MM) cartridge: - Input sensitivity at 1kHz: 5mV - Input impedance: 47kΩ + 100pF - Frequency response (ref. RIAA curve): 20Hz – 20kHz ± 1dB - Signal/Noise ratio (A-wtd) 50W, ref. 5mV input: 80dB - Overload margin, ref. 5mV at 1kHz: 21dB
Line Inputs: - Nominal sensitivity: 1V - Input impedance: 10kΩ - Maximum input: 6Vrms - Frequency response: 20Hz – 20kHz ± 0.2dB - Signal/Noise ratio (A-wtd) 50W, ref. 1V input: 106dB
Digital InputsDAC: ESS9038K2M Frequency response: 20Hz - 20kHz ± 0.05dB Total harmonics distortion + Noise: 0.0007% Signal/Noise ratio (A-wtd): 115dB Supported sample rates: - Optical 32kHz, 44.1kHz, 48kHz, 88.2kHz, 96kHz - Coaxial 32kHz, 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz Bit depth: 16-bit – 24-bit
Pre-amplifier outputNominal output level: 630mV Output impedance: 230Ω
Headphone outputMaximum output level into 600Ω: 5Vrms Output impedance: 1Ω Load range: 16Ω – 2kΩ
GeneralMains voltage: 110–120V or 220–240V, 50–60Hz Maximum power consumption: 500W Dimensions W x H x D (including feet, control knob and speaker terminals): 433x87x323mm Weight (net): 9.2kg Weight (gross): 11.1kg
Supplied accessories- Mains leads - Remote control - 2 x AAA batteries
Focal Aria 906 - 2-way Bookshelf LoudspeakerType: Two-way bass-reflex bookshelf loudspeaker Speaker drivers: - 61/2" (16.5cm) Flax bass - midrange - 1" (25mm) Al/Mg TNF inverted dome tweeter Frequency response: (+/- 3dB) 55Hz - 28kHz Low frequency point - 6 dB: 47Hz Sensitivity (2.83V / 1m): 89.5dB Nominal impedance: 8 Ohms Minimum impedance: 4.6 Ohms Recommended amplifier power: 25 - 120W Crossover frequency: 2800Hz Dimensions (H x W x D): 153/8x 87/8x 111/32" (390x225x280mm) Weight: 19lbs (8.5kg) |
---|
