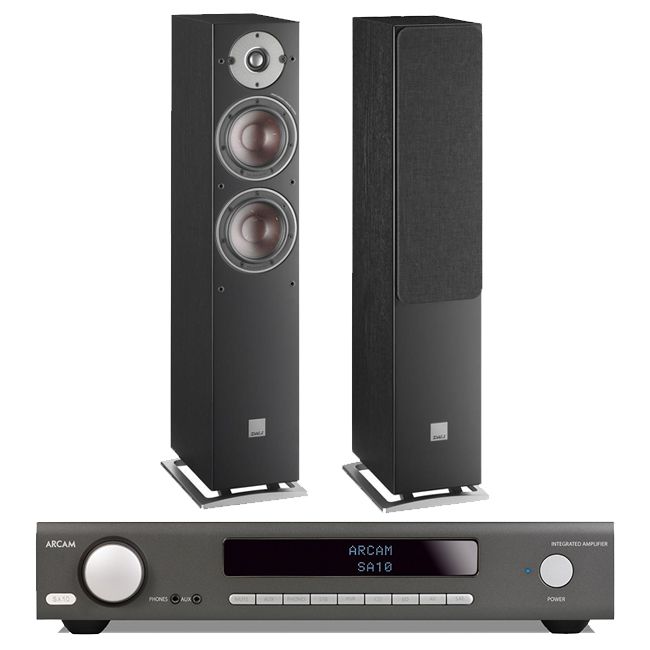

ARCAM SA10 + Dali Oberon 5 Floorstanding Speakers
✓ Authorised UK Dealer
✓ FREE Next Working Day Courier Service to mainland UK
Arcam SA10 Integrated Stereo Amp
The design of the HDA range draws upon all of Arcam’s experience as one of the UK’s most respected audio companies, to produce Arcam’s best performing range of audio products yet.
Dali Oberon 5 Floorstanding Speakers
The DALI OBERON 5 is the ultimate performer - combining DALI ideas, traditions and inventions. It's a compact and elegant floor-standing speaker, housing 2 x 5¼” wood fibre based woofers with SMC and the series’ wide bandwidth 29 mm ultra-lightweight soft dome tweeter.
From £1,049.00 Regular Price £1,394.00
To £1,049.00 Regular Price £1,394.00
Related Products
ARCAM SA10 (HDA Series) - Integrated Amplifier
Regular Price
£735.00
On Sale Price £695.00
On Sale Price £695.00
Arcam SA10 Integrated Stereo Amp
A singer’s sharp intake of breath before hitting the chorus, a guitarist’s fingers sliding against the strings – it’s those seemingly minor details that can bring music to life. Fish out one of your all-time favourite albums and play it through a Bluetooth speaker, and guess what? Its sounds like a Bluetooth speaker. Play it through the SA10, and it’s as close to hearing the artist’s performance as you’re likely to get. There’s always joy in digging out an old recording you haven’t heard in years. With the HDA range, it’ll feel like hearing it forthe first time.
Dali Oberon 5 Floorstanding Speakers
The DALI OBERON 5 is the ultimate performer - combining DALI ideas, traditions and inventions. It's a compact and elegant floor-standing speaker, housing 2 x 5¼” wood fibre based woofers with SMC and the series’ wide bandwidth 29 mm ultra-lightweight soft dome tweeter. This slim floor-stander will surprise with its ability to deliver a deep firm bass together with a clear and well defined mid-range and airy high frequencies. The OBERON 5 will impress with its natural and lifelike reproduction of any music or movie sound track.
With the launch of the DALI OBERON loudspeaker series, we have picked the best elements from our current speakers and brought them together in a series that delivers on audio quality, looks and versatility.
We have made it easy to integrate the OBERON 5 into any room, as both the driver materials and geometry applied have been selected to achieve a wide dispersion pattern in the listening area. The same principles have been applied in the design of the crossover.
As result, you will experience a well-integrated sound, even when listening at a significant off-axis angle. This is important as you are rarely seated directly in front of your loudspeakers when listening to music. An added benefit is seriously reduced harmonic distortion and diffractions causing frequency distortion, as these will always be stronger in an on-axis response. This is also the reason why all DALI speakers are not designed to be toed-in.
WOOFER
The OBERON 5 features a pair of 5.25" low-loss woofers that are optimised with a new wood fibre structured cone which is dedicated to reproduce the delicate midrange and bass frequency area - like every other driver made by DALI. It is constructed from a blend of fine grain paper pulp and reinforced with wood fibres, which creates a stiff, light-weight and well-behaving structure. In combination with a low-loss surround and spider suspension, this cone reproduces the micro details in the signal - unfiltered and with high accuracy.
The membrane terminates in a rubber surround that is chosen for its soft and very flexible properties. This gives the membrane free movement with a very low dampening effect, and leaves the magnet motor to control the membrane movement.
SMC
The use of SMC in the OBERON 5 greatly reduces mechanical distortion caused by hysteresis and eddy currents. These combined improvements in the magnet motor system results in a lowering of third order distortion. This allows the OBERON 5 to present longer listening pleasure, a relaxed midrange and a surprising amount of detailing for the class.
The magnet motor itself consists of a large ferrite magnet that sorrounds a pole piece made with a unique combination of iron and SMC. The iron ferrrite forms the lower base of the pole cylinder, topped of with 10 mm SMC disk to crown the pole piece. This combination minimizes the negative effects of the iron, while placing the SMC disk right in the main working area of the 4-layer voice coil. This placement ensures the maximum effect from the SMC on the voice coils environment, resulting in a greatly improved constant flux field.
TWEETER
The brand new 29 mm ultra-light soft dome tweeter used in the OBERON 5 is manufactured by DALI and has been developed specifically for the OBERON series - combining well proven technologies from our existing DALI ranges with new features.
The oversized 29 mm membrane is constructed based on an ultra-light wave weave fabric and is additionally optimised for a larger bandwidth in its lower frequency area. This ensures the optimal handover from the midrange woofer to the tweeter, creating a well-balanced, unforced and very coherent upper midrange. Compared to most soft dome tweeters in the market, the DALI dome material is less than half the weight (0.060 mg/mm2).
The large size of the membrane lets the tweeter generate higher sound pressure with less excursion, keeping the voice coil motion to a precise minimum.
The tweeter front plate near the dome has been designed with similar geometry as the OPTICON and RUBICON tweeters to create the optimal working conditions for the soft dome. The aim is to combine an extended frequency response with wide dispersion and low coloration.
| Features | Arcam SA10 AmpContinuous power output (0.5% THD), per channelBoth channels, 8Ω, 20Hz—20kHz: 50W Both channels, 4Ω, at 1kHz: 85W Harmonic distortion, 80% power, 8Ω at 1kHz: 0.003%
Analogue InputsPhono (MM) cartridge: - Input sensitivity at 1kHz: 5mV - Input impedance: 47kΩ + 100pF - Frequency response (ref. RIAA curve): 20Hz – 20kHz ± 1dB - Signal/Noise ratio (A-wtd) 50W, ref. 5mV input: 80dB - Overload margin, ref. 5mV at 1kHz: 21dB
Line Inputs: - Nominal sensitivity: 1V - Input impedance: 10kΩ - Maximum input: 6Vrms - Frequency response: 20Hz – 20kHz ± 0.2dB - Signal/Noise ratio (A-wtd) 50W, ref. 1V input: 106dB
Digital InputsDAC: ESS9016K2M Frequency response: 20Hz - 20kHz ± 0.05dB Total harmonics distortion + Noise: 0.0007% Signal/Noise ratio (A-wtd): 115dB Supported sample rates: - Optical 32kHz, 44.1kHz, 48kHz, 88.2kHz, 96kHz - Coaxial 32kHz, 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz Bit depth: 16-bit – 24-bit
Pre-amplifier outputNominal output level: 630mV Output impedance: 230Ω
Headphone outputMaximum output level into 600Ω: 5Vrms Output impedance: 1Ω Load range: 16Ω – 2kΩ
GeneralMains voltage: 110–120V or 220–240V, 50–60Hz Maximum power consumption: 350W Dimensions W x H x D (including feet, control knob and speaker terminals): 433x87x310mm Weight (net): 8.4kg Weight (gross): 10.7kg
Supplied accessories- Mains leads - Remote control - 2 x AAA batteries
Dali Oberon 5 Floorstanding Speakers
|
|---|
