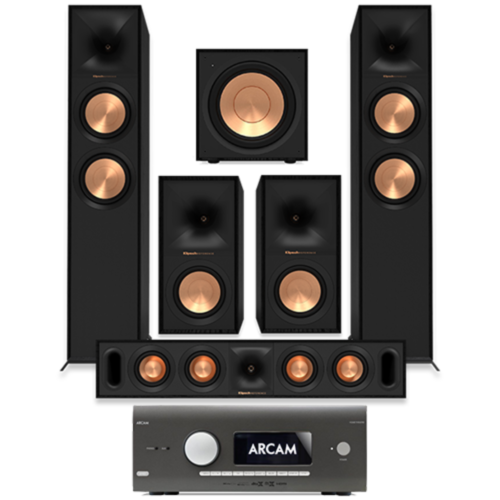

ARCAM AVR5 (HDA Series) Class AB AV Receiver Dolby Atmos + Klipsch Reference II R-605FA 5.1.2 Dolby Atmos Home Theatre System 2

✓ 2 Year Warranty included
✓ Authorised UK Dealer
✓ FREE Next Working Day Courier Service to mainland UK

ARCAM AVR5 (HDA Series) - Class AB AV Receiver Dolby Atmos

Rich Musicality + Immersive Sound = Stunning Realism

Klipsch R-605FA Dolby Atmos Floorstanding Speaker

The R-605FA features a high-performance up-firing Dolby Atmos speaker integrated in the top for an enveloping soundstage.

Klipsch R-30C Centre Speaker

The Klipsch R-30C delivers more power and emotion to your music and movies. Bigger definitely means better, with direct control over a larger bandwidth of frequencies, resulting in a more accurate sound stage.

Klipsch R-50M Bookshelf Speakers

The Klipsch R-50M bookshelf speaker offers intense and immersive home theatre entertainment. With its new and redesigned larger Tractrix horn and copper-clad TCP polymer drivers, the R-50M dramatically upgrades your home entertainment.

Klipsch R-121SW Subwoofer

The Klipsch R-121SW Subwoofer delivers a powerful bass to enhance your home theatre experience. With its revamped spun-copper thermoformed crystalline polymer woofers, the R-121SW provides low-frequency response accompanied by a 12" driver that provides deep bass and flexible room placement.

From £3,699.00 Regular Price £4,747.00

To £3,746.63 Regular Price £4,808.13

FREE Delivery to Mainland UK*

*Read more

All Next Working Day orders placed before 3pm are dispatched same day (Excludes bank holidays and weekends).

RETURNS
We're pretty sure you'll be happy with your purchase, however for details about our returns policy click here.



Customize ARCAM AVR5 (HDA Series) Class AB AV Receiver Dolby Atmos + Klipsch Reference II R-605FA 5.1.2 Dolby Atmos Home Theatre System 2
ARCAM AVR5 (HDA Series) - Class AB AV Receiver Dolby Atmos & DTS:X 7.1.4   + £0.00
Klipsch Reference II R-605FA 5.1.2 Dolby Atmos Home Theatre System 2   + £0.00

* Required Fields

Your Customization
ARCAM AVR5 (HDA Series) Class AB AV Receiver Dolby Atmos + Klipsch Reference II R-605FA 5.1.2 Dolby Atmos Home Theatre System 2
ARCAM AVR5 (HDA Series) Class AB AV Receiver Dolby Atmos + Klipsch Reference II R-605FA 5.1.2 Dolby Atmos Home Theatre System 2

In stock

£3,699.00

Summary

    ARCAM AVR5 (HDA Series) - Class AB AV Receiver Dolby Atmos

    The Arcam AVR5 is a high-performance audio/visual receiver that delivers stunning realism for the ultimate home cinema experience. Native 12-channel decoding of immersive audio from Dolby Atmos and DTS:X, the AVR5 can deliver incredible theatre experiences.



    The Arcam AVR5 is designed with a passion for music and movies, bringing both to life with truly high fidelity. The AVR5 features an over engineered power supply and transformer for real world power with low noise. The Class AB amplifiers are based upon those in Arcam stereo amplifiers, guaranteeing musicality otherwise not heard from other AV receivers.



    The performance and musicality can be accessed immediately with integrated streaming using Apple Airplay2, Google Chromecast, Bluetooth with aptX®HD, Spotify Connect, and UPnP with the MusicLife app.



    • Dolby Atmos & DTS:X 7.1.4 decoding
    • 4K (UHD) HDMI2.0b with HDCP2.2
    • 7 HDMI inputs, 2 HDMI outputs, eARC compatible
    • Ready for Dirac Live® room correction
    • ESS 9026PRO audiophile DACs
    • Class AB power amplification
    • Uses frame-type transformer
    • Wifi / Ethernet, RS232 and IR control
    • Apple Airplay2 and Google Cast for streaming audio
    • Bluetooth aptX®HD
    • Free MusicLife iOS and Android UPnP streaming app
    • Supports MQA
    • Roon Ready



     Klipsch Reference II R-605FA 5.1.2 Dolby Atmos Home Theatre System 2

    Linear Travel Suspension (LTS) Aluminum Tweeter

    A hallmark of Klipsch speakers, the exclusive 1" LTS with Kapton Suspension tweeter minimizes distortion for more detailed performances. Aluminum is an extremely light and rigid material used in the tweeter assembly to provide high efficiency.

    Spun-Copper Thermoformed Crystalline Polymer Woofers

    Utilizing trickle-down technology from Klipsch's highly acclaimed Reference Premiere series of speakers, the 3.5" TCP woofers have steeper angling of the cones for a smoother response and improved accuracy and transparency.

    Rear Tractrix Port

    The rear Tractrix port is perfectly matched to the cabinet and woofers, creating ideal airflow with minimal distortion or turbulence even at the lowest frequencies.

    High-Quality Cabinet Design & Appearance

    Hidden fasteners, edge-to-edge horn, and low-profile magnetic grilles give the speakers a polished, modern appearance. MDF cabinets with scratch-resistant, textured wood grain to fit right into your home décor.



    Seek New Heights

    Immersive sound comes alive from all directions, including overhead, with these Dolby Atmos® enabled speakers. Add them to any monitor or tower speaker, or use as surround speakers for a hemisphere of rich, detailed sound.

    Elevation Built In

    Not just your typical full-range tower speaker, the R-605FA features a high performance up-firing Dolby Atmos speaker integrated in the top for an enveloping soundstage. It's a perfectly matched setup that virtually disappears.



    All-Digital Amplifier

    The built-in, all-digital amplifier delivers ample power with high efficiency and true-to-source accuracy in reproduction, ensuring maximum efficiency for best-in-class output, detail, and power.

    Highly Durable & Versatile Cabinet Design

    A stylish aesthetic with unrivaled durability that results in a seamless integration into any décor, Reference Subwoofers feature:

    Scratch-resistant
    Reinforced ¾" MDF construction
    All-new bracing design for reduced vibration
    Front-mounted LED power indicator
    Low-profile grille for acoustic transparency



    Pro-Ject E1

    Low Pass Crossover and Phase Control

    Ensures the subwoofer's low-frequency tones blend with other Klipsch speakers and establish your ideal level of bass.

    Line/Life Inputs

    Reference subwoofers are compatible with your home theater receiver, no matter the make and model.





    More Information
    Features

    ARCAM AVR5 (HDA Series) - Class AB AV Receiver Dolby Atmos


    Continuous power output, per channel, 8Ω/4Ω
    2 channels driven, 20Hz - 20kHz, <0.02% THD 80W/100W
    2 channels driven, 1kHz, 0.2% THD 85W/120W
    7 channels driven, 1kHz, 0.2% THD 60W/85W
    Residual noise & hum (A-wtd) <0.15mV

    Stereo Line Inputs
    Maximum input 4.5V rms
    Nominal sensitivity 1V, 2V, 4V (user adjustable)
    Input impedance 47kΩ
    Signal/noise ratio (A-wtd ref 100W) normal/stereo direct 100dB/110dB
    Frequency response 20Hz—20kHz ± 0.2dB

    Preamplifier Outputs
    Nominal output level 1V RMS (max. 5V RMS)
    Output impedance 560Ω
    THD+N (20Hz—20kHz) –100dB

    Headphone Output
    Maximum output level into 32Ω 5Vrms
    Output impedance <100Ω

    General
    Mains voltage 110–120V or 220–240V, 50–60Hz
    Power consumption (maximum) 1.5kW (Thermal dissipation approx. 5200 BTU/hour)
    Power consumption (idle, typical) 90W (Thermal dissipation approx. 340 BTU/hour)
    Power consumption (standby) <0.5W
    Dimensions W x D (including speaker terminals) x H (including feet) 433 x 425 x 171mm
    Weight (net) 16.5kg
    Weight (packed) 19.8kg
    Supplied accessories Mains lead
      Remote control with 2 x AAA batteries
      Manual
      DAB/FM aerial
      3 x WiFi/Bluetooth antennas



    Klipsch R-605FA Dolby Atmos Floorstanding Speaker

    Frequency Response: Main Channel: 38Hz - 21kHz +/- 3dB
    Height Channel: Conforms to Dolby Atmos Specifications
    Sensitivity: Main Channel: 96 dB @ 2.83V/1M (in-room)
    Height Channel: Conforms to Dolby Atmos Specifications
    Power Handling (Cont/Peak): Main Channel:100W/400W
    Height Channel: 75W/150W
    Nominal Impedance: Main Channel: 8 ohms Compatible
    Height Channel: 8 ohms Compatible
    Crossover Frequency: 1,440 Hz
    High Frequency Driver: Main Channel:1" Aluminum LTS tweeter mated to a 90 x 90 square Tractrix Horn
    Height Channel: 1" Aluminum LTS tweeter mated to a 90 x 90 square Tractrix Horn
    Low Frequency Driver: Main Channel: Dual 6.5" spun-copper TCP woofers
    Height Channel: 5.25" spun-copper IMG woofer
    Enclosure Material: MDF
    Enclosure Type: Main Channel:Bass-Reflex via rear-firing Tractrix ports
    Height Channel: Acoustic Suspension
    Inputs: Single Gold Plated Binding Posts
    Dimensions (H x W x D): 1017 x 240 x 463mm
    Weight: 22.7kg
    Finishes: Black Textured Wood Grain Vinyl
    Accessories: Injection molded feet & screws

    Klipsch R-30C Centre Speaker

    Frequency Response: 78Hz - 21kHz +/- 3dB
    Sensitivity: 90 dB @ 2.83V/1M (in-room)
    Power Handling (Cont/Peak): 100W/400W
    Nominal Impedance: 8 ohms Compatible
    Crossover Frequency: 1,650 Hz
    High Frequency Driver: 1” Aluminium LTS tweeter mated to a 90 x 90 square Tractrix® Horn
    Low Frequency Driver: Quad 3.5" spun-copper TCP woofers
    Enclosure Material: MDF
    Enclosure Type: Bass-Reflex via rear-firing Tractrix® ports
    Inputs: Single Gold Plated Binding Posts
    Dimensions (H x W x D): 126 x 660 x 173mm
    Weight: 5.9kg
    Finishes: Black Textured Wood Grain Vinyl

    Klipsch R-50M Bookshelf Speakers

    Frequency Response: 58Hz – 21kHz +/- 3dB
    Sensitivity: 92dB (In-Room)
    Power Handling (Cont/Peak): 50W/200W
    Nominal Impedance: 8 ohms Compatible
    Crossover Frequency: 1,560 Hz
    High Frequency Driver: 1” Aluminium LTS tweeter mated to a 90 x 90 square Tractrix® Horn
    Low Frequency Driver: Single 5.25” spun-copper TCP woofer
    Enclosure Material: MDF
    Enclosure Type: Bass-Reflex via rear-firing Ports
    Inputs: Single Gold Plated Binding Posts
    Dimensions (H x W x D): 354 x 178 x 229mm
    Weight: 5kg
    Finishes: Black Textured Wood Grain Vinyl

    Klipsch R-121SW Subwoofer

    Frequency Response: 28Hz-120Hz
    Maximum Acoustic Output:  118dB
    Amplifier: All digital
    Amplifier Power: 200W / 400W
    Amplifier Features: Volume, Low-pass, 0/180 phase, Auto Power On
    Drive Components: 12" high excursion spun-copper TCP woofer
    Enclosure Material: MDF
    Enclosure Type: Bass Reflex via rear-firing port
    Inputs: Line level/LFE RCA jacks
    Height: 16.6" (421 mm)
    Width: 16" (406 mm)
    Depth: 19.7" (500 mm)
    Weight: 35 lbs (16.0 kg)
    Finishes: Black Textured Wood Grain Vinyl
